twinKon®4 conical abutments

Banner_TwinKon® Range

Straight screw-retained conical abutments

The conical abutments in the twinKon® 4 systems have been designed to obtain progressive emergence of the prosthesis.

The shoulder is wide enough to encourage the passive fit of the bridge framework.

The tapered abutment is embedded on the external tapered part by friction and screwed into the implant using the prosthesis fixing screw.
This assembly benefits from the characteristics of tapered connection systems.

The conical abutment comes in two diameters: 4.3 mm and 5.4 mm.

Conical abutments Ø 4.3 mm and associated prosthetic components

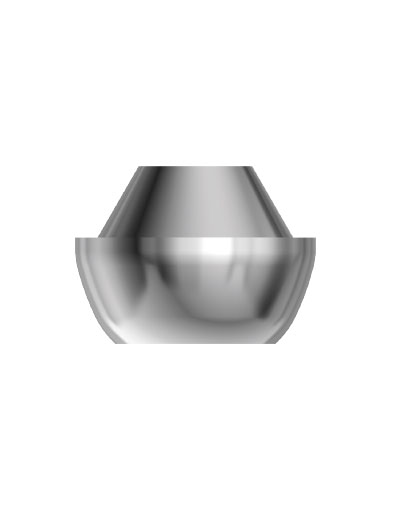

Ø4.3 mm conical abutment from the twinKon®4 range

The Ø4.3 mm conical abutment has a periodontal height of 2.9 mm to facilitate its installation, a specific activator is available.

Impression-taking is carried out directly on the conical abutment, with Pick-Up, Pop-Up, or digital impression copings.

A cover cap is available with a height of 3 mm to protect the abutment while the bridge is being constructed by the prosthetist.

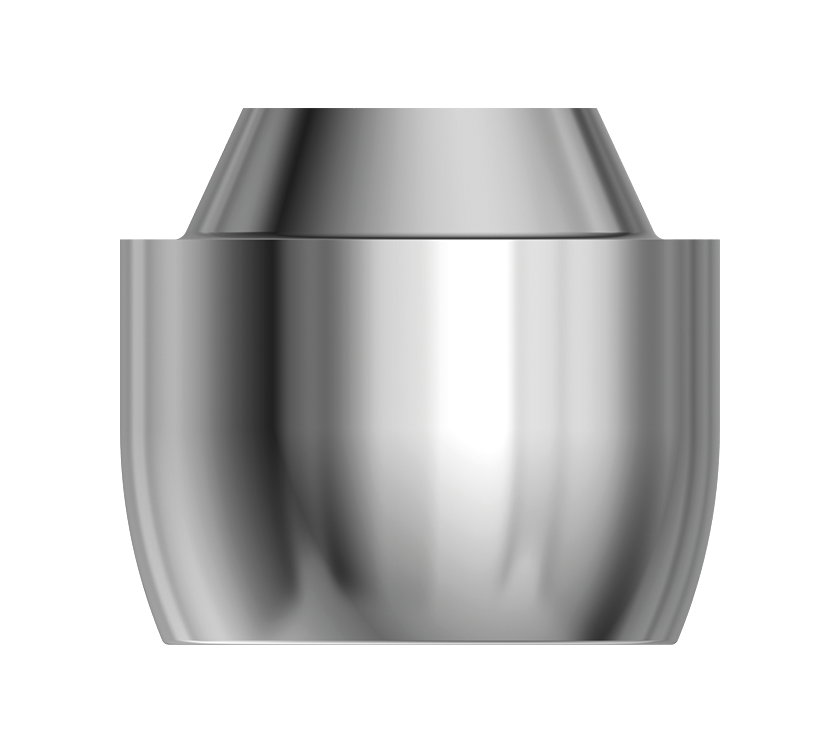

Ø 5.4 mm conical abutments

Conical abutments for the twinKon®4 implant system

The Ø 5.4 mm conical abutment is available in periodontal heights of 2.4 mm and 3.4 mm.

Impression-taking is carried out directly on the conical abutment with Pick-Up impression copings.

A cover cap is available to protect the abutment while the bridge is being constructed by the prosthetist.

Note: we recommend tightening of secondary components to 20 N-cm, using a torque wrench.



DOCUMENTATION

► Download the Subcrestal Prosthesis Catalog – twinKon®4 Conical Abutments

► Download the twinKon®4 Surgery Manual – twinKon®4 Conical Abutments
